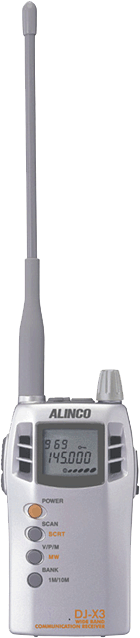

DJ-X3E & DJ-X3Z The DJ-X3E is a small, competativly priced unit that offers continuous coverage with no gaps from 0.1Mhz through to 1300MHz. All the features you expect in a modern scanner are available including a decoder for speech inversion scrambling. The DJ-X3 can also be connected to a PC for data upload/download and suitable software has recently been released by ALinco and can be downloaded at no charge from their USA web site. A suitable interface is required. Alinco DJ-X3 software Main Features Coverage range: 0.1 to 1300 MHz 700 memory channels (10 banks x 70ch/bank) 20 pairs of programmed-scan memory channels, 8 priority channels and 100 search-pass memory channels that skips scan even in VFO/Programmed-scan mode VFO, Programmed, Preset, and Memory scan modes with memory-skip capability Scans 20steps p/s in VFO mode, 10 channels p/s in memory mode. 11 different steps plus an automatic-step mode Palm-fitting, lightweight, easy-to-carry compact body WFM, WFM stereo, NFM and AM modes An SMA rubber-ducky, earphone, and internal ferrite-bar antennas (AM/SW) improve reception capability and operational flexibility. Bug detector finds hidden transmitters Speech Inversion Decoder Wide variety of optional accessories to choose from High quality audio, capable of STEREO (optional stereo speaker or headphone required) Triple Conversion circuit Large, illuminated display PC utility software (available soon)

Specifications

• RX frequency range: 0.1 to 1299.995MHz continuuos (ie. no gaps)
• Mode: AM, FM, WFM, WFM stereo
• Antenna imp.: 50 ohms unbalanced / SMA
• Battery voltage: 3.6Vdc to 6.0 Vdc
• External DC power source: 4.5V to 16Vdc
• Battery consumption: 150mA nominal/ stand-by 75mA/ battery-save ON(1:4 cycle) 39mA
• Operating temperature: -10 to 60 C or 14 to 140 F
• Frequency stability: +/- 5 ppm at operating temperature range.
• Dimension without projection: 56(W) X 102(H) X 23 (D) mm
• Weight: 145g with Ni-MH battery pack and a rubber-duck antenna
• RX System: Triple super heterodyne
  1st IF: 248.45MHz
  2nd IF: 38.85MHz
  3rd IF: 450KHz
• RX selectivity:
  AM/FM : -6dB/12KHz or over -60dB/30KHz or less WFM : -6dB/150KHz or over
• RX sensitivity(Typical):
  FM / 30 to 550MHz : less than -3dBu/12dB SINAD, 550MHz and up: less than 0dBu/12dB SINAD)
  WFM / less than 13dBu (12dBu SINAD)
  AM / 0.5 to 1.62MHz : less than 17dBu (10dB S/N), 1.62MHz and up : less than 5dBu (10dB S/N)
• AF output: Max 220mW or more (8ohms)

DJ-X3E Supplied Accessories


• SMA Flexible Antenna
• Dry Cell battery case (3 x AA cells)
• Carry Strap

DJ-X3Z Supplied Accessories


• SMA Antenna
• Belt Clip & Carry Strap
• 3 x AA Dry Cell Case
• EBP-52NS Ni-MH Battery Pack (3.6v, 500mA)
• EDC-105 Ni-MH battery charger
• EDC-93 110v or EC-94 220v AC Power Supply (Please state which you prefer).
• English manual

See our specials page for details of our current DJ-X3Z deal. This is only available to customers outside the EU.

---

The DJ-X3E is now available from stock.

Within the UK/EU the price is £129.00 including VAT

For export outside the UK/EU the price is £125.00 Pounds. This excludes Tax (not payable) and includes delivery by Air Mail and as a guideline works out to be about US$200 or so with exchange rates as they are at the moment. Optional courier delivery is available as an option.

See our specials page for details of the DJ-X3Z package for customers outside the EU.
