Camnis HSC-150, HSC-190 & HSC-200

CAMNIS/Trident
HSC-150/TR-4000
HSC-190/TR-2000
HSC-200/TR-2200

None of these models are available anymore and this page remains for reference.

The HSC-190/TR-2000 is the same receiver that was previously sold by AOR as the AR2700. It was distributed for a sort time (from July '99) by Commtel as the COM600.

The HSC-200/TR-2200 is identical in appearance to the HSC-190/TR-2200 (AR2700) but has slightly wider coverage, additional modes and increment steps. It is more than probable that this is the receiver that was offered to AOR and prematurely suggested would appear as the AR2900. It was distributed (from July '99) by Commtel as the COM610 and in Germany as the ALbrecht AE600H.

The HSC-150/TR-4000 is very similar in appearance to the AR1500/Trident TR-980 also produced by the same Company.

Basic Specifications are as follows:-

Model	HSC-150/TR-4000 (Laptop not included !)
Frequency Range	100kHz - 2059MHz
Modes	WFM, NFM, AM, LSB & USB
Tuning/Increment Steps	10Hz - 999.9KHz
Memory Channels	1000 (10 banks of 100)
Memory Scan Speed	30 channels per second (maximum)
Search Speed	50 increments per second
Computer Control	Available via Interface such as the JAV-232 or RS-TR4000
Software	Free Software available from our web site

Model HSC-190/TR-2000
(Same as AR2700 & COM600)
Frequency Range 100kHz - 1300MHz
Modes WFM, NFM, AM
Tuning/Increment Steps 5, 6.25, 9, 10, 12.5, 20, 25, 30, 50 & 100KHz
Memory Channels 500 (10 banks of 50)
Memory Scan Speed 30 channels per second (maximum)
Search Speed 30 increments per second
Computer Control Available via Interface such as the JAV-232 or RS-8000
Software AOR's PC Manager can be used
Operating Manual The AR2700 manual is available from the AOR UK web site

Model	HSC-190/TR-2000 (Same as AR2700 & COM600)
Frequency Range	100kHz - 1300MHz
Modes	WFM, NFM, AM
Tuning/Increment Steps	5, 6.25, 9, 10, 12.5, 20, 25, 30, 50 & 100KHz
Memory Channels	500 (10 banks of 50)
Memory Scan Speed	30 channels per second (maximum)
Search Speed	30 increments per second
Computer Control	Available via Interface such as the JAV-232 or RS-8000
Software	AOR's PC Manager can be used
Operating Manual	The AR2700 manual is available from the AOR UK web site

Model HSC-200, TR-2200, AE600H
(Same as COM610)

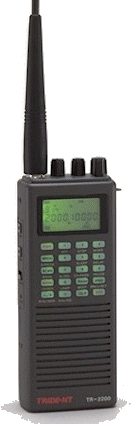

TR-2200
Frequency Range 100kHz - 2059MHz
Modes WFM, NFM, AM, LSB & amp USB
Tuning/Increment Steps 10, 50, 100 & 500Hz.
5, 6.25, 9, 10, 12.5, 20, 25, 30, 50 & 100KHz
Memory Channels 500 (10 banks of 50)
Memory Scan Speed 30 channels per second (maximum)
Search Speed 30 increments per second
Computer Control Available via Interface such as the JAV-232 or RS-8000
Software Free Software available from our web site
Operating Manual With the exception of the SSB modes and smaller step sizes the AR2700 manual can be used.
Available from the AOR UK web site

Model	HSC-200, TR-2200, AE600H (Same as COM610)
Frequency Range	100kHz - 2059MHz
Modes	WFM, NFM, AM, LSB & amp USB
Tuning/Increment Steps	10, 50, 100 & 500Hz. 5, 6.25, 9, 10, 12.5, 20, 25, 30, 50 & 100KHz
Memory Channels	500 (10 banks of 50)
Memory Scan Speed	30 channels per second (maximum)
Search Speed	30 increments per second
Computer Control	Available via Interface such as the JAV-232 or RS-8000
Software	Free Software available from our web site
Operating Manual	With the exception of the SSB modes and smaller step sizes the AR2700 manual can be used. Available from the AOR UK web site
